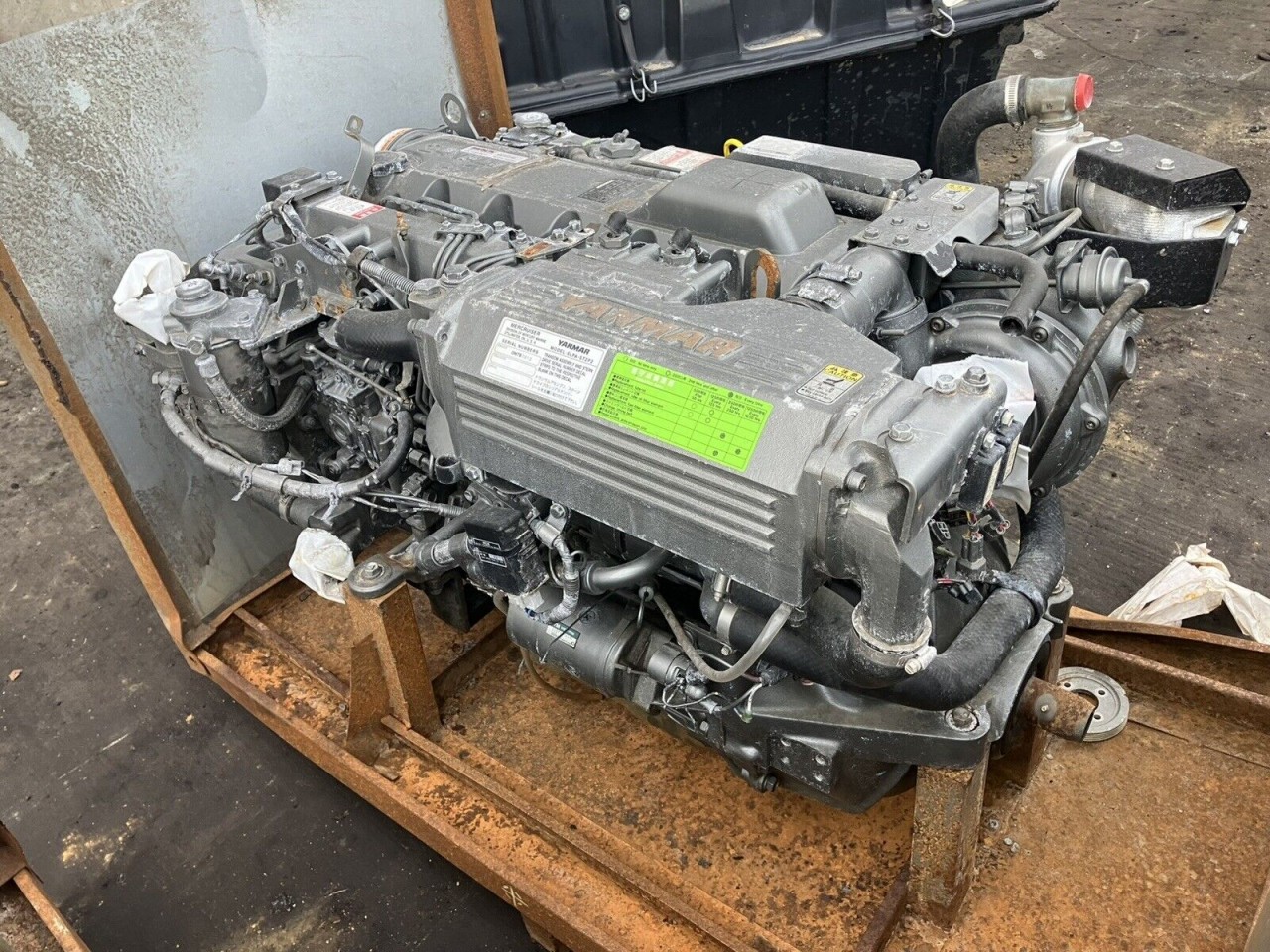

Yanmar 6LPA-STZP2 Turbo Marine Diesel
Product Description
- Rated output 232 kw / 315 mhp
Rated Speed 3800 rpm
Displacement 4.164 L / 254 cu. in
No. of cylinders 6 cylinders
Cylinder Bore x Stroke 94 mm x 100 mm / 3.7 in x 3.94 in
Combustion system Direct Injection, 2-stage Injection
Aspiration Turbocharged & Intercooled
Alternator 12V - 80A
Dry weight without gear 408 kg / 899 lbs
Dimensions 1220 mm x 666 mm x 739 mm
Controls Mechanical
Certifications RCD 1 IMO Tier 2 EPA Tier 2 BSO II EMC SOLAS
NOTE:
1 kW = 1.3596 mhp = 1.34102 bhp
Fuel condition: density at 15°C = 0.842 g/cm³
Technical data is according to (ISO 8665) / (ISO 3046)
Fuel temperature 25°C at the inlet of the fuel injection pump (ISO 3046)
Dimensions includes KMH50A gearbox with standard mixing elbow
Measured with through drive exhaust, without sterndrive (1148mm x 862mm x 784mm)
